Sale!

Audiosavings Bundle: (6) JBL Control 85M 5.25″ Commercial 70v Outdoor Inground/Onground Landscape Speaker

Original price was: $139.99.Current price is: $113.99.

Package Includes: (6) JBI CONTROL 85M 5.25″ Commercial 70v Outdoor Inground/Onground Landscape Speaker. Features: Components: 5¼” highly weather-resistant driver. ¾” soft-dome highly weather-resistant tweeter. 80W Pink Noise Power Handling (160W program) in direct 8 setting, plus built-in 30W 70V/100V multi-tap transformer. Tough polyethylene highly weather resistant enclosure. Fully isolated center chamber for wiring protection

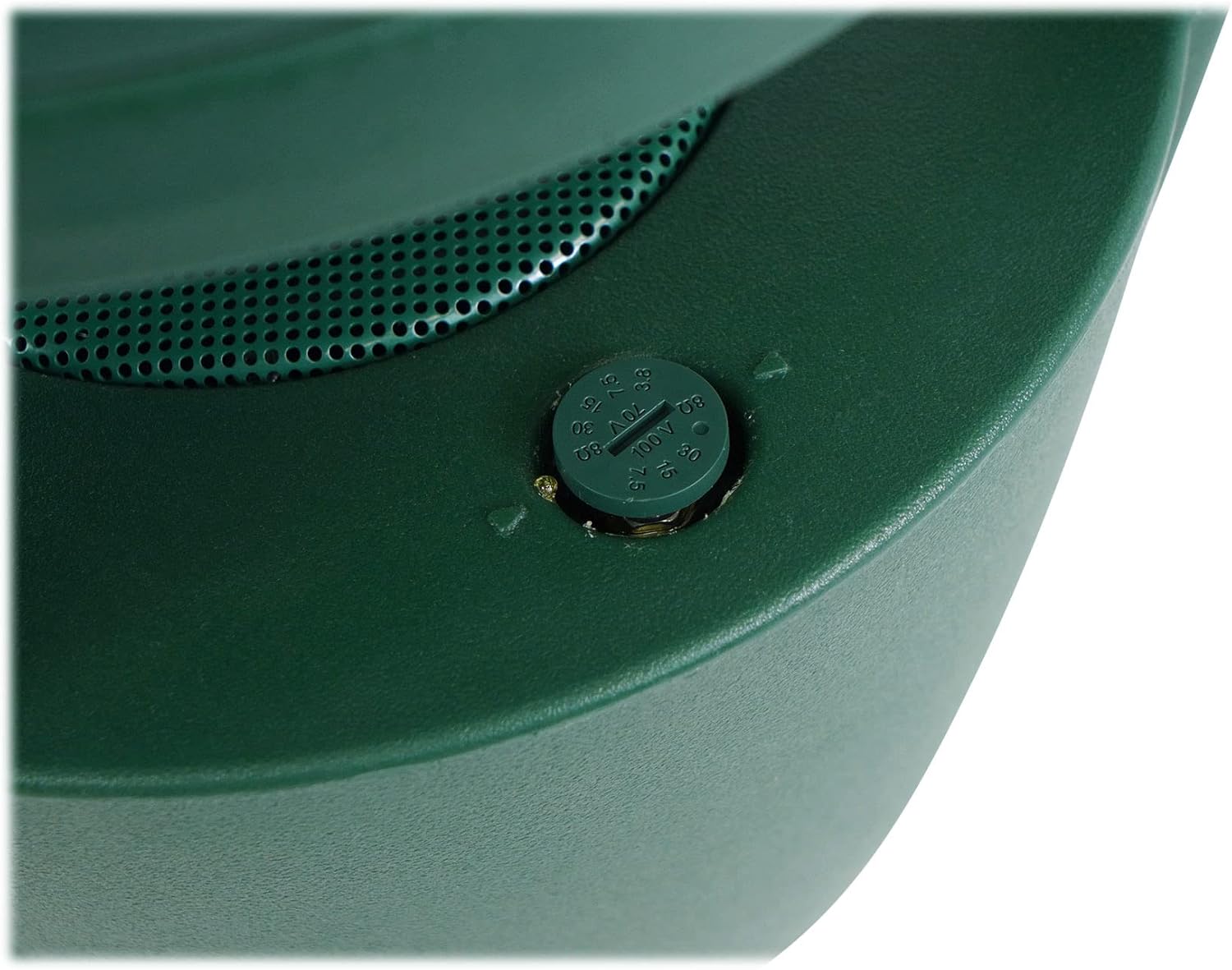

High fidelity sound character with broad frequency range of 55Hz – 18kHz. Specifications: Frequency Range (-10dB): 55 Hz – 18 kHz. Power Rating: 160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs). Transformer Taps: 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W. Frequency Response (±3 dB): 65Hz – 16 kHz. Maximum Input Voltage: 23.3 V. Sensitivity: 86 dB, 1W @ 1m (ave. 80Hz – 16kHz)
Coverage Angle: 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground).. Directivity Factor (Q): 2.2. Directivity Index (DI): 3.4 dB. Maximum SPL (1m): 105 dB. Impedance: 😯 (at 😯 setting). Insertion Loss: <1.0 dB at any tap setting. Thru Setting: 8O nominal. Crossover Type: 2nd Order LPF on LF and 2nd Order HPF on HF. Recommended Protective High-Pass: 65 Hz for 8O operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct
LF Driver: LF: 135 mm (5.25 in) diameter LF driver, Kapton former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround. HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome.. Enclosure: LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.. Grille: Powder coated stainless steel.
Outdoor Capability: IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.. Safety Agency: UL1480, Transformer UL Recognized per UL1876, ROHS compliant.. Input Connectors: Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section).

Quantity
Categories: , , , , Tags: , , , , , , , , , , ,

Description

Price: $139.99 - $113.99
(as of Jul 15,2025 01:57:02 UTC – Details)



Package Includes: (6) JBI CONTROL 85M 5.25″ Commercial 70v Outdoor Inground/Onground Landscape Speaker. Features: Components: 5¼” highly weather-resistant driver. ¾” soft-dome highly weather-resistant tweeter. 80W Pink Noise Power Handling (160W program) in direct 8 setting, plus built-in 30W 70V/100V multi-tap transformer. Tough polyethylene highly weather resistant enclosure. Fully isolated center chamber for wiring protection
High fidelity sound character with broad frequency range of 55Hz – 18kHz. Specifications: Frequency Range (-10dB): 55 Hz – 18 kHz. Power Rating: 160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs). Transformer Taps: 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W. Frequency Response (±3 dB): 65Hz – 16 kHz. Maximum Input Voltage: 23.3 V. Sensitivity: 86 dB, 1W @ 1m (ave. 80Hz – 16kHz)
Coverage Angle: 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground).. Directivity Factor (Q): 2.2. Directivity Index (DI): 3.4 dB. Maximum SPL (1m): 105 dB. Impedance: 😯 (at 😯 setting). Insertion Loss: <1.0 dB at any tap setting. Thru Setting: 8O nominal. Crossover Type: 2nd Order LPF on LF and 2nd Order HPF on HF. Recommended Protective High-Pass: 65 Hz for 8O operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct
LF Driver: LF: 135 mm (5.25 in) diameter LF driver, Kapton former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround. HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome.. Enclosure: LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.. Grille: Powder coated stainless steel.
Outdoor Capability: IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.. Safety Agency: UL1480, Transformer UL Recognized per UL1876, ROHS compliant.. Input Connectors: Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section).
